NDL 50Hz
High-capacity NDL pump for heating, cooling, and water circulation systems, operating from 15°C to 110°C.
| Technical Data | |
|---|---|
| Liquid Temperature: | -15°C~+110°C |
| Max. Flow: | 1200 m³/h |
| Max. Head: | 108 m |
| Power Range: | 1.1-200 KW |
Supported payment types:
Supported payment types:
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information

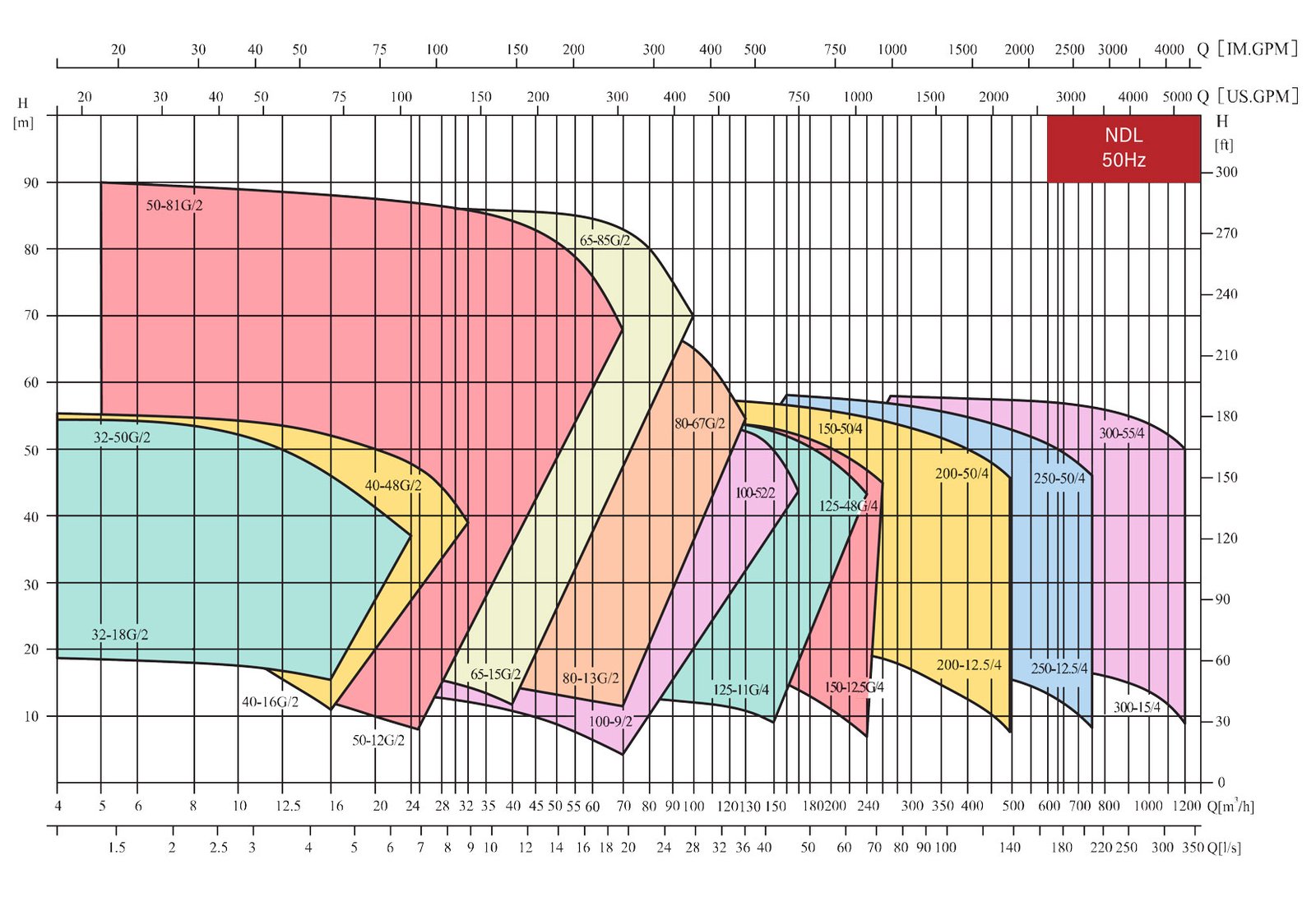

- Hydraulic Performance Curves
Description
Applications:
- Heating System: Heating Cycle, Boiler Mixed Flow, Temperature Mixed Flow.
- Intermittent Heating, Waste Gas Heat Recovery, Hybrid Loop, Domestic Hot Water Circulation.
- Air Conditioning System: Chilled Water Circulation.
- Water Supply System: Filtration and Transportation, Pipeline Pressurization.
- Industrial Production: Flushing and Cleaning Systems, Boiler Feed Water, Cooling Water Circulation.
- Water Treatment Systems, Equipment Supporting Systems.
- Fire Fighting System.
Features:
- Pump Body: HT200/QT400.
- Impeller: HT200/AISI304.
- Enclosures class: IP55.
- Insulation class: F.
Product Catalog:
Additional information
| Max. Flow: | 1200 m³/h |
|---|---|
| Max. Head: | 108 m |
| Power Range: | 1.1-200 KW |
| Liquid Temperature: | -15°C~+110°C |
Overview
Applications:
- Heating System: Heating Cycle, Boiler Mixed Flow, Temperature Mixed Flow.
- Intermittent Heating, Waste Gas Heat Recovery, Hybrid Loop, Domestic Hot Water Circulation.
- Air Conditioning System: Chilled Water Circulation.
- Water Supply System: Filtration and Transportation, Pipeline Pressurization.
- Industrial Production: Flushing and Cleaning Systems, Boiler Feed Water, Cooling Water Circulation.
- Water Treatment Systems, Equipment Supporting Systems.
- Fire Fighting System.
Features:
- Pump Body: HT200/QT400.
- Impeller: HT200/AISI304.
- Enclosures class: IP55.
- Insulation class: F.
Product Catalog:
Details
| specifications | |
|---|---|
| Liquid Temperature: | -15°C~+110°C |
| Max. Flow: | 1200 m³/h |
| Max. Head: | 108 m |
| Power Range: | 1.1-200 KW |
