NEP 50Hz
The NEP pump is a heavy-duty centrifugal pump designed for water treatment, industrial cleaning, and HVAC systems with high flow and head capacity.
| Technical Data | |
|---|---|
| Liquid Temperature: | Range (-15°C / +80°C) |
| Max. Flow: | 1584 m³/h |
| Max. Head: | 152 m |
| Power Range: | 0.75-250 KW |
Supported payment types:
Supported payment types:
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information

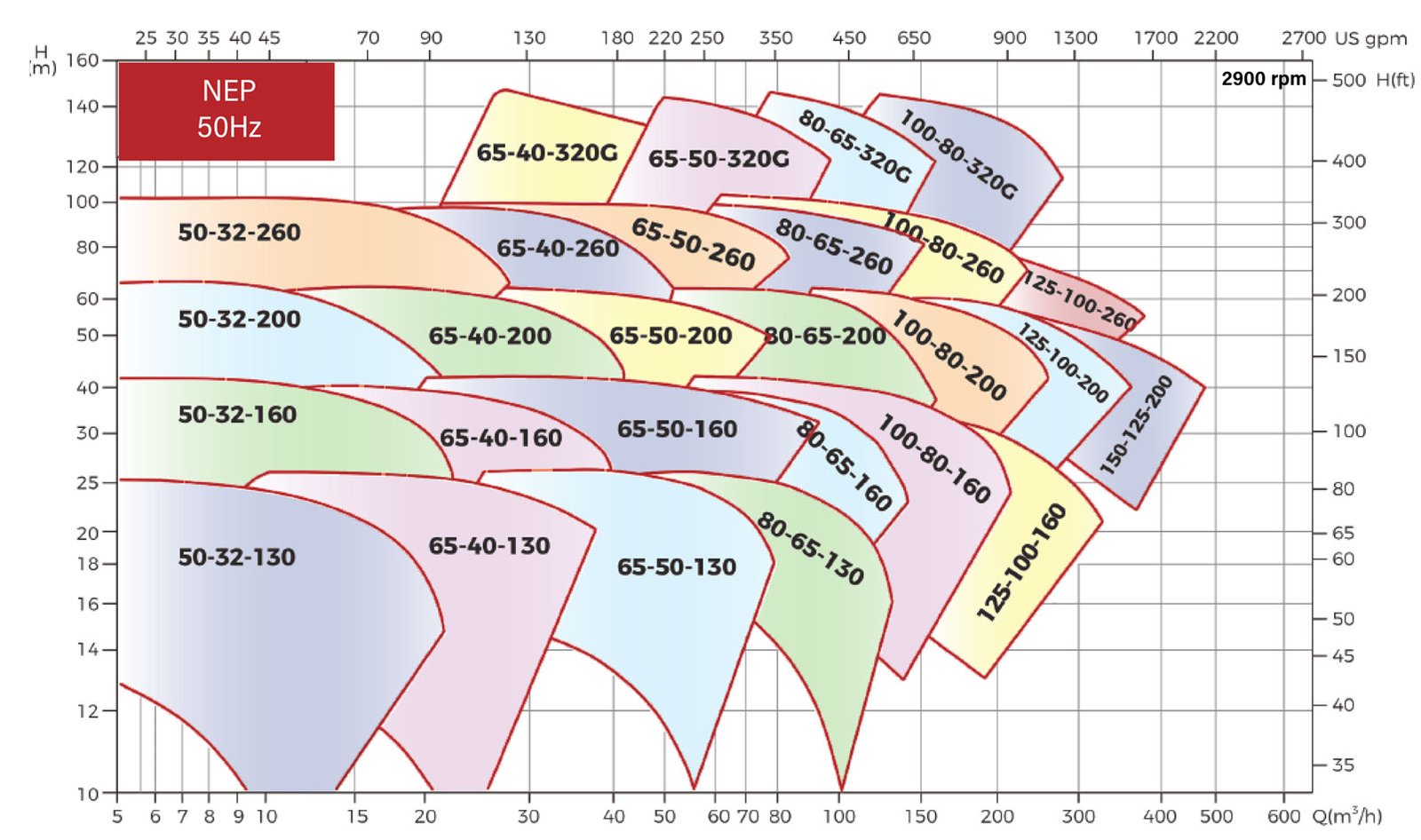

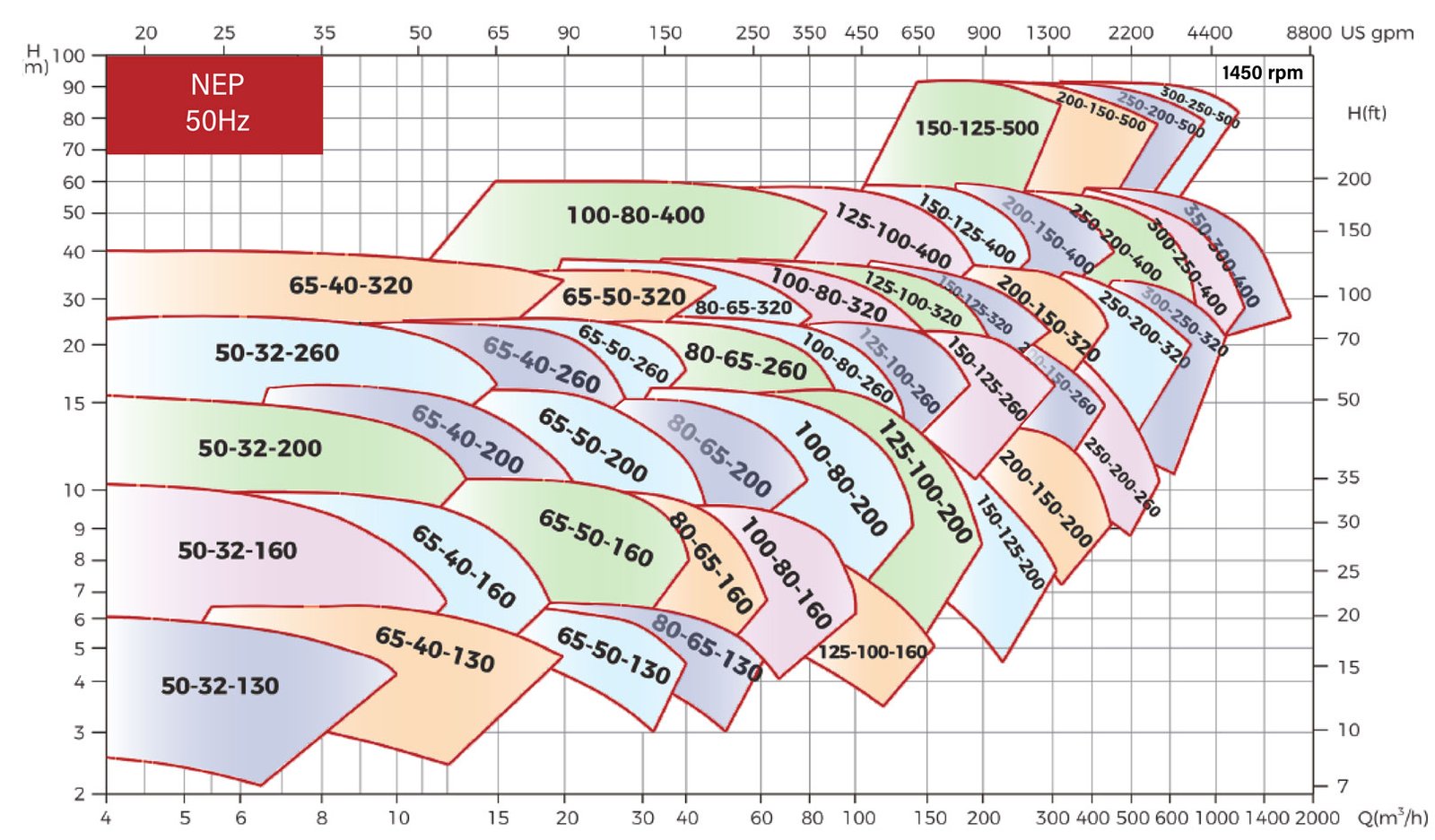

- Hydraulic Performance Curves
Description
Applications:
- Water treatment processes.
- Industrial cleaner.
- Air-conditioning system, air freshening, heater device (soft water)
Features:
- Long Coupled.
- Pump Case: Cast Iron (Standard) Ductile Iron 304/316.
- Impeller: Cast Iron (Standard) Brass/Bronze 304/316.
Product Catalog:
Additional information
| Max. Flow: | 1584 m³/h |
|---|---|
| Max. Head: | 152 m |
| Power Range: | 0.75-250 KW |
| Liquid Temperature: | Range (-15°C / +80°C) |
Overview
Details
| specifications | |
|---|---|
| Liquid Temperature: | Range (-15°C / +80°C) |
| Max. Flow: | 1584 m³/h |
| Max. Head: | 152 m |
| Power Range: | 0.75-250 KW |
