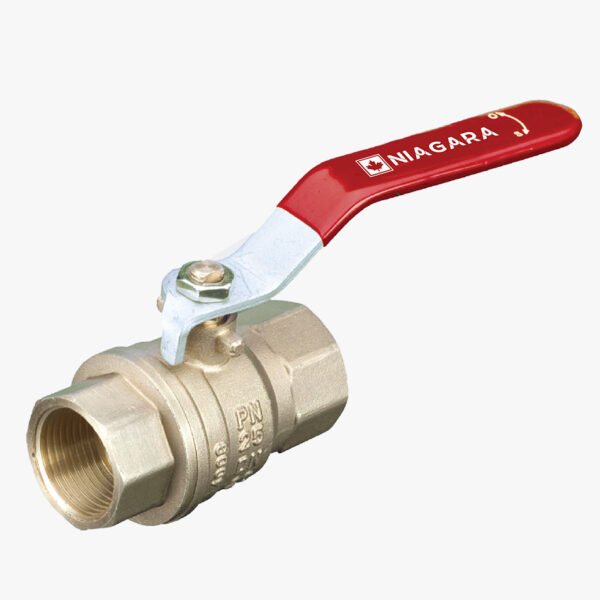

NIAGARA Ball Valve – Model BS10
Compact and durable DZR brass ball valve designed for reliable performance. Offers excellent leak protection, easy installation, and optional extension stems for chilled water applications. Suitable for pressures up to 25 bar and temperatures from -10°C to 100°C.
| Technical Data | |
|---|---|
| End Connections | BS EN 10226-2:2005 (formerly BS21 Taper) |
| Material: | DZR Brass |
| Operating Temperature: | -10°C to 100°C |
| Pressure Rating: | PN25 |
| Size: | 1/4" to 2 |
| Test Pressure: | 25 bar pneumatic |
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information
Description
NIAGARA Ball Valve – Model BS10
The BS10 ball valves are engineered to deliver long-lasting performance and reliability in various plumbing and industrial systems.
Made from DZR brass, these valves are dezincification-resistant, ensuring superior corrosion protection and durability even under demanding conditions.
Lightweight and compact, they are easy to install and operate, offering enhanced leak protection and resistance to damage during installation.
For chilled water systems, an optional extension stem is available, providing versatility for different applications.
Technical Specifications:
-
Size: 1/4″ to 2″
-
Pressure Rating: PN25
-
End Connections: BS EN 10226-2:2005 (formerly BS21 Taper)
-
Test Pressure: 25 bar pneumatic
-
Material: DZR Brass
-
Operating Temperature: -10°C to 100°C
Additional information
| Size: | 1/4" to 2 |
|---|---|
| Pressure Rating: | PN25 |
| End Connections | BS EN 10226-2:2005 (formerly BS21 Taper) |
| Test Pressure: | 25 bar pneumatic |
| Material: | DZR Brass |
| Operating Temperature: | -10°C to 100°C |
Overview
NIAGARA Ball Valve – Model BS10
The BS10 ball valves are engineered to deliver long-lasting performance and reliability in various plumbing and industrial systems.
Made from DZR brass, these valves are dezincification-resistant, ensuring superior corrosion protection and durability even under demanding conditions.
Lightweight and compact, they are easy to install and operate, offering enhanced leak protection and resistance to damage during installation.
For chilled water systems, an optional extension stem is available, providing versatility for different applications.
Technical Specifications:
-
Size: 1/4″ to 2″
-
Pressure Rating: PN25
-
End Connections: BS EN 10226-2:2005 (formerly BS21 Taper)
-
Test Pressure: 25 bar pneumatic
-
Material: DZR Brass
-
Operating Temperature: -10°C to 100°C
Details
| specifications | |
|---|---|
| End Connections | BS EN 10226-2:2005 (formerly BS21 Taper) |
| Material: | DZR Brass |
| Operating Temperature: | -10°C to 100°C |
| Pressure Rating: | PN25 |
| Size: | 1/4" to 2 |
| Test Pressure: | 25 bar pneumatic |
