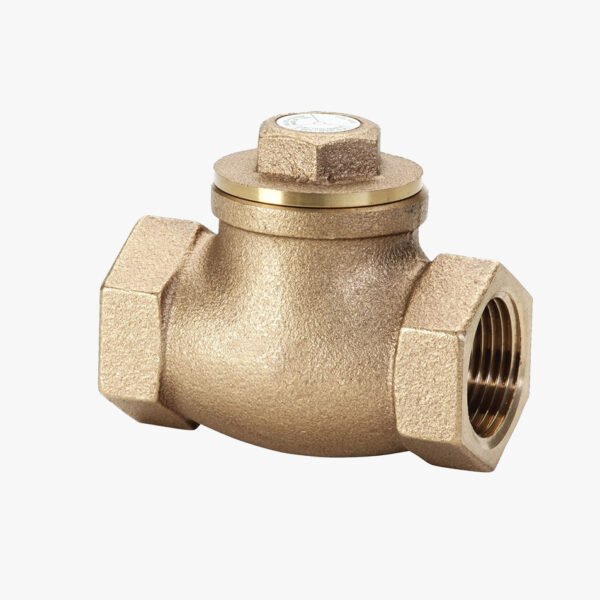

NIAGARA Check Valve – Model CB432
Durable bronze check valve with a horizontal lift pattern and metal-to-metal seat for enhanced sealing. Designed to ensure reliable backflow prevention and long-lasting performance under high pressure and temperature conditions.
| Technical Data | |
|---|---|
| End Connections | Taper threaded to BS EN 10226 ISO 7-1 (BS 21) |
| Material: | Bronze |
| Pressure Rating: | PN32 |
| Pressure / Temperature: | 14 bar at 198°C, 32 bar from -10°C to 100°C, BS 5154 PN32 Series B |
| Size: | 1/4" to 2 |
| Test Pressure: | Seat: 35.2 bar – Hydraulic, Shell: 6 bar – Pneumatic |
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information
Description
NIAGARA Check Valve – Model CB432
The CB432 model is a high-quality bronze check valve designed to prevent backflow and maintain one-way fluid direction in piping systems.
It features a robust bronze body with a horizontal lift pattern, ensuring smooth and efficient operation.
The metal-to-metal seat design provides superior sealing and durability, making it ideal for demanding applications involving high pressure or temperature variations.
With taper threaded connections manufactured according to BS EN 10226 ISO 7-1 (BS 21), this valve guarantees compatibility and reliability across different system configurations.
Technical Specifications:
-
Size: 1/2″ to 2″
-
Pressure Rating: PN32
-
End Connections: Taper threaded to BS EN 10226 ISO 7-1 (BS 21)
-
Test Pressure:
-
Seat: 35.2 bar – Hydraulic
-
Shell: 6 bar – Pneumatic
-
-
Material: Bronze
-
Pressure / Temperature:
-
BS 5154 PN32 Series B
-
14 bar at 198°C
-
32 bar from -10°C to 100°C
-
Additional information
| Size: | 1/4" to 2 |
|---|---|
| Pressure Rating: | PN32 |
| End Connections | Taper threaded to BS EN 10226 ISO 7-1 (BS 21) |
| Test Pressure: | Seat: 35.2 bar – Hydraulic, Shell: 6 bar – Pneumatic |
| Material: | Bronze |
| Pressure / Temperature: | 14 bar at 198°C, 32 bar from -10°C to 100°C, BS 5154 PN32 Series B |
Overview
NIAGARA Check Valve – Model CB432
The CB432 model is a high-quality bronze check valve designed to prevent backflow and maintain one-way fluid direction in piping systems.
It features a robust bronze body with a horizontal lift pattern, ensuring smooth and efficient operation.
The metal-to-metal seat design provides superior sealing and durability, making it ideal for demanding applications involving high pressure or temperature variations.
With taper threaded connections manufactured according to BS EN 10226 ISO 7-1 (BS 21), this valve guarantees compatibility and reliability across different system configurations.
Technical Specifications:
-
Size: 1/2″ to 2″
-
Pressure Rating: PN32
-
End Connections: Taper threaded to BS EN 10226 ISO 7-1 (BS 21)
-
Test Pressure:
-
Seat: 35.2 bar – Hydraulic
-
Shell: 6 bar – Pneumatic
-
-
Material: Bronze
-
Pressure / Temperature:
-
BS 5154 PN32 Series B
-
14 bar at 198°C
-
32 bar from -10°C to 100°C
-
Details
| specifications | |
|---|---|
| End Connections | Taper threaded to BS EN 10226 ISO 7-1 (BS 21) |
| Material: | Bronze |
| Pressure Rating: | PN32 |
| Pressure / Temperature: | 14 bar at 198°C, 32 bar from -10°C to 100°C, BS 5154 PN32 Series B |
| Size: | 1/4" to 2 |
| Test Pressure: | Seat: 35.2 bar – Hydraulic, Shell: 6 bar – Pneumatic |
