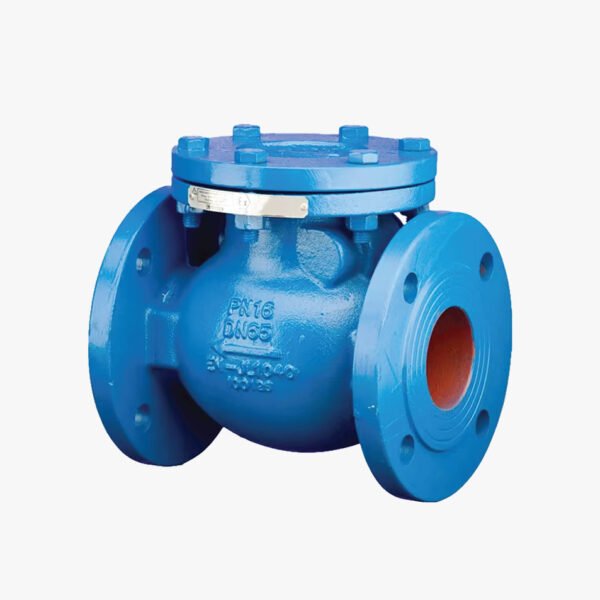

NIAGARA Check Valve – Model CS4 / CS4 ANSI
Reliable cast iron swing check valve designed for water and liquid systems. Features a bolted cover and dual flange standards (BS EN and ANSI) for flexible installation in horizontal or vertical pipelines.
| Technical Data | |
|---|---|
| Material: | Cast Iron |
| Pressure Rating: | PN16 |
| Pressure / Temperature: | 11.8 bar at 230°C, 16 bar from -10°C to 120°C, BS EN 1092-2 PN16 |
| Size: | 50mm to 300mm |
| Test Pressure: | Seat: 17.6 bar (hydraulic), Shell: 24 bar (hydraulic) |
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information
Description
NIAGARA Check Valve – Model CS4 / CS4 ANSI
The CS4 and CS4 ANSI models are swing-type check valves engineered to ensure smooth one-way flow and automatic closure to prevent backflow.
Designed for flow velocities up to 3 meters per second, these valves are ideal for water and other non-corrosive liquids.
They feature a bolted cover for easy maintenance and are suitable for installation in both horizontal and vertical pipelines.
Constructed from durable cast iron, the CS4 valves offer exceptional strength, reliability, and long service life under varying temperature and pressure conditions.
Both models comply with international flange standards, providing compatibility across different piping systems.
Technical Specifications:
-
Size: 50mm to 300mm
-
Pressure Rating: PN16
-
End Connections:
-
CS4: Flanged to BS EN 1092-2 PN16
-
CS4 ANSI: Flanges drilled to ANSI B16.1 125
-
-
Material: Cast Iron
-
Pressure / Temperature:
-
BS EN 1092-2 PN16
-
16 bar from -10°C to 120°C
-
11.8 bar at 230°C
-
-
Test Pressure:
-
Shell: 24 bar (hydraulic)
-
Seat: 17.6 bar (hydraulic)
-
Additional information
| Size: | 50mm to 300mm |
|---|---|
| Pressure Rating: | PN16 |
| Material: | Cast Iron |
| Pressure / Temperature: | 11.8 bar at 230°C, 16 bar from -10°C to 120°C, BS EN 1092-2 PN16 |
| Test Pressure: | Seat: 17.6 bar (hydraulic), Shell: 24 bar (hydraulic) |
Overview
NIAGARA Check Valve – Model CS4 / CS4 ANSI
The CS4 and CS4 ANSI models are swing-type check valves engineered to ensure smooth one-way flow and automatic closure to prevent backflow.
Designed for flow velocities up to 3 meters per second, these valves are ideal for water and other non-corrosive liquids.
They feature a bolted cover for easy maintenance and are suitable for installation in both horizontal and vertical pipelines.
Constructed from durable cast iron, the CS4 valves offer exceptional strength, reliability, and long service life under varying temperature and pressure conditions.
Both models comply with international flange standards, providing compatibility across different piping systems.
Technical Specifications:
-
Size: 50mm to 300mm
-
Pressure Rating: PN16
-
End Connections:
-
CS4: Flanged to BS EN 1092-2 PN16
-
CS4 ANSI: Flanges drilled to ANSI B16.1 125
-
-
Material: Cast Iron
-
Pressure / Temperature:
-
BS EN 1092-2 PN16
-
16 bar from -10°C to 120°C
-
11.8 bar at 230°C
-
-
Test Pressure:
-
Shell: 24 bar (hydraulic)
-
Seat: 17.6 bar (hydraulic)
-
Details
| specifications | |
|---|---|
| Material: | Cast Iron |
| Pressure Rating: | PN16 |
| Pressure / Temperature: | 11.8 bar at 230°C, 16 bar from -10°C to 120°C, BS EN 1092-2 PN16 |
| Size: | 50mm to 300mm |
| Test Pressure: | Seat: 17.6 bar (hydraulic), Shell: 24 bar (hydraulic) |
