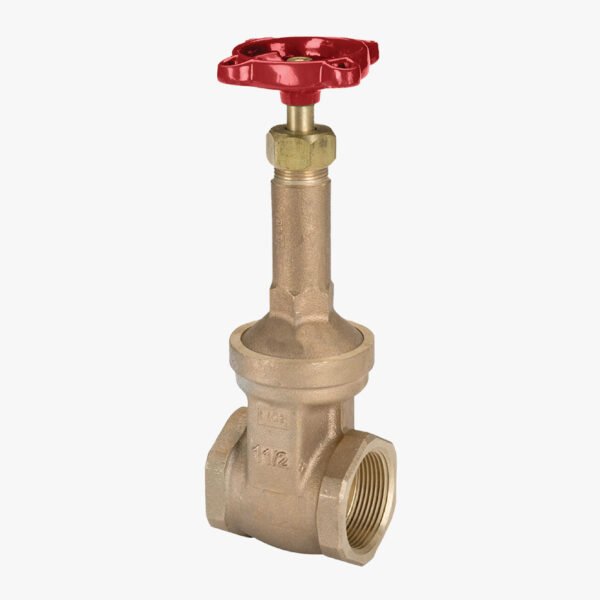

NIAGARA Gate Valve – Model GB41
Heavy-duty bronze gate valve with rising stem design for precise control and reliable shut-off. Built for high-pressure applications up to 32 bar with durable integral seating surfaces.
| Technical Data | |
|---|---|
| End Connections | Taper threaded BS EN 10226 (ISO 7-1, formerly BS 21) |
| Material: | Bronze |
| Pressure Rating: | PN32 |
| Pressure / Temperature: | 14 bar at 198°C, 32 bar from -10°C to 100°C |
| Size: | 1/2" to 2 |
| Test Pressure: | Seat: 22 bar, Shell: 30 bar |
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information
Description
NIAGARA Gate Valve – Model GB41
The GB41 model is a premium-quality bronze gate valve designed for high-pressure systems requiring dependable shut-off and long service life.
It features integral seating surfaces for superior sealing performance and an inside screw pattern with a rising stem, allowing easy visual indication of valve position.
Manufactured from robust bronze, this valve offers outstanding resistance to corrosion and mechanical wear.
Engineered to handle pressures up to 32 bar, it provides stable and efficient performance in water, air, and non-corrosive liquid systems, even under high-temperature conditions.
Technical Specifications:
-
Size: 1/2″ to 2″
-
Pressure Rating: PN32
-
End Connections: Taper threaded BS EN 10226 (ISO 7-1, formerly BS 21)
-
Material: Bronze
-
Test Pressure:
-
Seat: 22 bar
-
Shell: 30 bar
-
-
Pressure / Temperature:
-
14 bar at 198°C
-
32 bar from -10°C to 100°C
-
Additional information
| Size: | 1/2" to 2 |
|---|---|
| Pressure Rating: | PN32 |
| End Connections | Taper threaded BS EN 10226 (ISO 7-1, formerly BS 21) |
| Material: | Bronze |
| Test Pressure: | Seat: 22 bar, Shell: 30 bar |
| Pressure / Temperature: | 14 bar at 198°C, 32 bar from -10°C to 100°C |
Overview
NIAGARA Gate Valve – Model GB41
The GB41 model is a premium-quality bronze gate valve designed for high-pressure systems requiring dependable shut-off and long service life.
It features integral seating surfaces for superior sealing performance and an inside screw pattern with a rising stem, allowing easy visual indication of valve position.
Manufactured from robust bronze, this valve offers outstanding resistance to corrosion and mechanical wear.
Engineered to handle pressures up to 32 bar, it provides stable and efficient performance in water, air, and non-corrosive liquid systems, even under high-temperature conditions.
Technical Specifications:
-
Size: 1/2″ to 2″
-
Pressure Rating: PN32
-
End Connections: Taper threaded BS EN 10226 (ISO 7-1, formerly BS 21)
-
Material: Bronze
-
Test Pressure:
-
Seat: 22 bar
-
Shell: 30 bar
-
-
Pressure / Temperature:
-
14 bar at 198°C
-
32 bar from -10°C to 100°C
-
Details
| specifications | |
|---|---|
| End Connections | Taper threaded BS EN 10226 (ISO 7-1, formerly BS 21) |
| Material: | Bronze |
| Pressure Rating: | PN32 |
| Pressure / Temperature: | 14 bar at 198°C, 32 bar from -10°C to 100°C |
| Size: | 1/2" to 2 |
| Test Pressure: | Seat: 22 bar, Shell: 30 bar |
