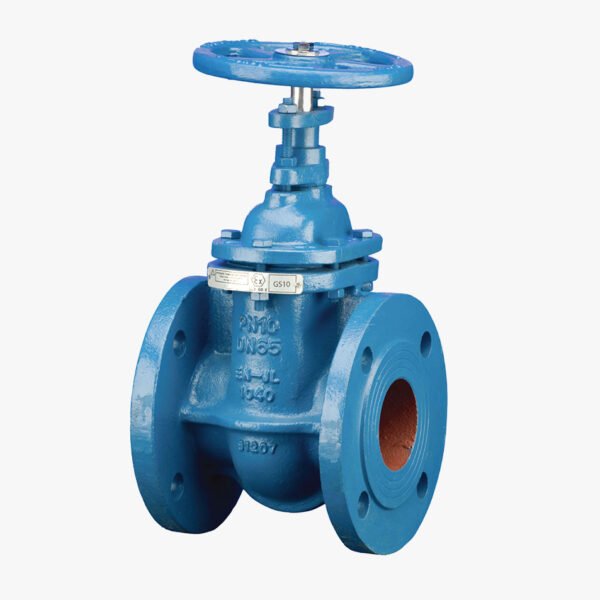

NIAGARA Gate Valve – Model GS10
Cast iron flanged gate valve with non-rising stem design, ideal for clean and non-corrosive services. Built for dependable operation and tested to BS EN 12266 standards.
| Technical Data | |
|---|---|
| End Connections | Flanged to BS EN 1092-2 PN10 |
| Material: | Cast Iron |
| Pressure Rating: | PN10 |
| Pressure / Temperature: | 10 bar from -10°C to 120°C, 7.4 bar at 230°C, BS EN 1171 PN10 |
| Size: | 50mm to 150mm |
| Test Pressure: | Seat: 11 bar, Shell: 15 bar |
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information
Description
NIAGARA Gate Valve – Model GS10
The GS10 model is a cast iron flanged gate valve designed for reliable flow control in clean and non-corrosive fluid systems.
It features an inside screw pattern with a non-rising stem, ensuring a compact design suitable for installations with limited vertical space.
The integral flanges simplify installation and improve sealing performance.
Seat rings are threaded and securely fixed into the valve body for long-lasting durability and leak resistance.
Each valve is hydrostatically tested in accordance with BS EN 12266, ensuring full compliance with international quality standards.
Technical Specifications:
-
Size: 50mm to 150mm
-
Pressure Rating: PN10
-
End Connections: Flanged to BS EN 1092-2 PN10
-
Material: Cast Iron
-
Test Pressure:
-
Seat: 11 bar
-
Shell: 15 bar
-
-
Pressure / Temperature:
-
10 bar from -10°C to 120°C
-
7.4 bar at 230°C
-
BS EN 1171 PN10
-
Additional information
| Size: | 50mm to 150mm |
|---|---|
| Pressure Rating: | PN10 |
| End Connections | Flanged to BS EN 1092-2 PN10 |
| Material: | Cast Iron |
| Test Pressure: | Seat: 11 bar, Shell: 15 bar |
| Pressure / Temperature: | 10 bar from -10°C to 120°C, 7.4 bar at 230°C, BS EN 1171 PN10 |
Overview
NIAGARA Gate Valve – Model GS10
The GS10 model is a cast iron flanged gate valve designed for reliable flow control in clean and non-corrosive fluid systems.
It features an inside screw pattern with a non-rising stem, ensuring a compact design suitable for installations with limited vertical space.
The integral flanges simplify installation and improve sealing performance.
Seat rings are threaded and securely fixed into the valve body for long-lasting durability and leak resistance.
Each valve is hydrostatically tested in accordance with BS EN 12266, ensuring full compliance with international quality standards.
Technical Specifications:
-
Size: 50mm to 150mm
-
Pressure Rating: PN10
-
End Connections: Flanged to BS EN 1092-2 PN10
-
Material: Cast Iron
-
Test Pressure:
-
Seat: 11 bar
-
Shell: 15 bar
-
-
Pressure / Temperature:
-
10 bar from -10°C to 120°C
-
7.4 bar at 230°C
-
BS EN 1171 PN10
-
Details
| specifications | |
|---|---|
| End Connections | Flanged to BS EN 1092-2 PN10 |
| Material: | Cast Iron |
| Pressure Rating: | PN10 |
| Pressure / Temperature: | 10 bar from -10°C to 120°C, 7.4 bar at 230°C, BS EN 1171 PN10 |
| Size: | 50mm to 150mm |
| Test Pressure: | Seat: 11 bar, Shell: 15 bar |
