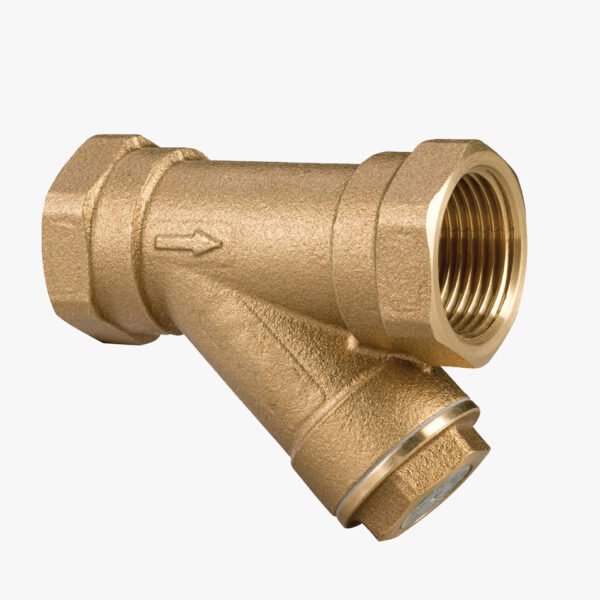

NIAGARA Strainer – Model SB20
Durable bronze Y-type strainer designed for efficient removal of impurities in piping systems, minimizing pressure loss and ensuring reliable performance.
| Technical Data | |
|---|---|
| End Connections | Threaded to BS EN 10266 (BS 21 Taper ISO R7) & B1.20.1 ANSI (Suffix “AT” for American threads) |
| Material: | Bronze |
| Pressure Rating: | PN20 |
| Temperature Rating | 20 bar from -10°C to 100°C, 9 bar at 180°C, For WRAS approval: -10°C to 85°C |
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information
Description
NIAGARA Strainer – Model SB20
The SB20 model is a bronze Y-type strainer engineered to remove foreign matter within piping systems and protect downstream equipment such as pumps, valves, and meters.
Its streamlined internal contours minimize pressure drop, while the compact face-to-face design allows easy installation even in limited spaces.
The perforated stainless-steel screen ensures efficient filtration, and the asbestos-free non-stick gasket provides a secure, maintenance-friendly seal for long-lasting durability.
Technical Specifications:
-
Pressure Rating: PN20
-
End Connections: Threaded to BS EN 10266 (BS 21 Taper ISO R7) & B1.20.1 ANSI (Suffix “AT” for American threads)
-
Material: Bronze
-
Temperature Rating:
-
20 bar from -10°C to 100°C
-
9 bar at 180°C
-
For WRAS approval: -10°C to 85°C
-
Applications:
Ideal for water, oil, and air systems, industrial installations, and HVAC systems, ensuring clean flow and preventing damage to sensitive components.
Note: Designed for reliable system protection and extended equipment life.
Additional information
| Pressure Rating: | PN20 |
|---|---|
| Temperature Rating | 20 bar from -10°C to 100°C, 9 bar at 180°C, For WRAS approval: -10°C to 85°C |
| Material: | Bronze |
| End Connections | Threaded to BS EN 10266 (BS 21 Taper ISO R7) & B1.20.1 ANSI (Suffix “AT” for American threads) |
Overview
NIAGARA Strainer – Model SB20
The SB20 model is a bronze Y-type strainer engineered to remove foreign matter within piping systems and protect downstream equipment such as pumps, valves, and meters.
Its streamlined internal contours minimize pressure drop, while the compact face-to-face design allows easy installation even in limited spaces.
The perforated stainless-steel screen ensures efficient filtration, and the asbestos-free non-stick gasket provides a secure, maintenance-friendly seal for long-lasting durability.
Technical Specifications:
-
Pressure Rating: PN20
-
End Connections: Threaded to BS EN 10266 (BS 21 Taper ISO R7) & B1.20.1 ANSI (Suffix “AT” for American threads)
-
Material: Bronze
-
Temperature Rating:
-
20 bar from -10°C to 100°C
-
9 bar at 180°C
-
For WRAS approval: -10°C to 85°C
-
Applications:
Ideal for water, oil, and air systems, industrial installations, and HVAC systems, ensuring clean flow and preventing damage to sensitive components.
Note: Designed for reliable system protection and extended equipment life.
Details
| specifications | |
|---|---|
| End Connections | Threaded to BS EN 10266 (BS 21 Taper ISO R7) & B1.20.1 ANSI (Suffix “AT” for American threads) |
| Material: | Bronze |
| Pressure Rating: | PN20 |
| Temperature Rating | 20 bar from -10°C to 100°C, 9 bar at 180°C, For WRAS approval: -10°C to 85°C |
