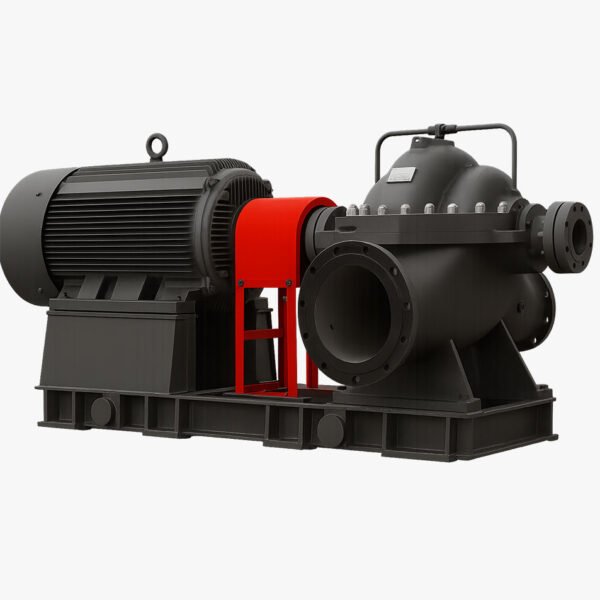

NSC 50Hz
High-capacity split case pump for water, chemicals, and industrial applications, designed for efficiency and durability.
| Technical Data | |
|---|---|
| Abrasive medium concentration: | ≤4% |
| Capacity Q: | 50-20000 m3/h |
| Discharge Him DN: | 80-1200mm |
| Head H: | 10-230m |
| Operating Pressure P: | ≤5MPa |
| Operating Temperature T: | -15°C-+200°C(above80°C. |
| Suction Slide DN: | 100-1400mm |
Supported payment types:
Supported payment types:
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information

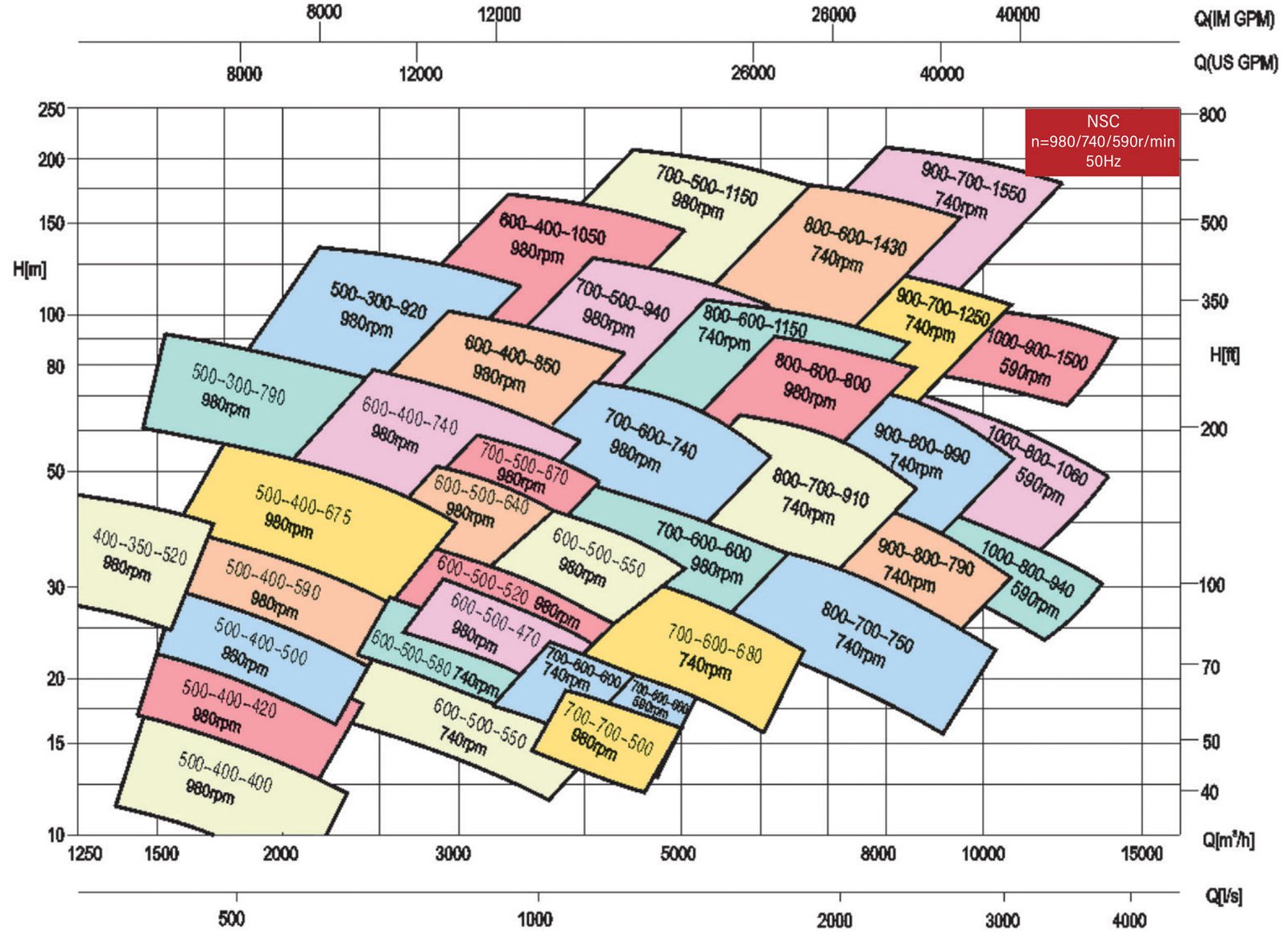

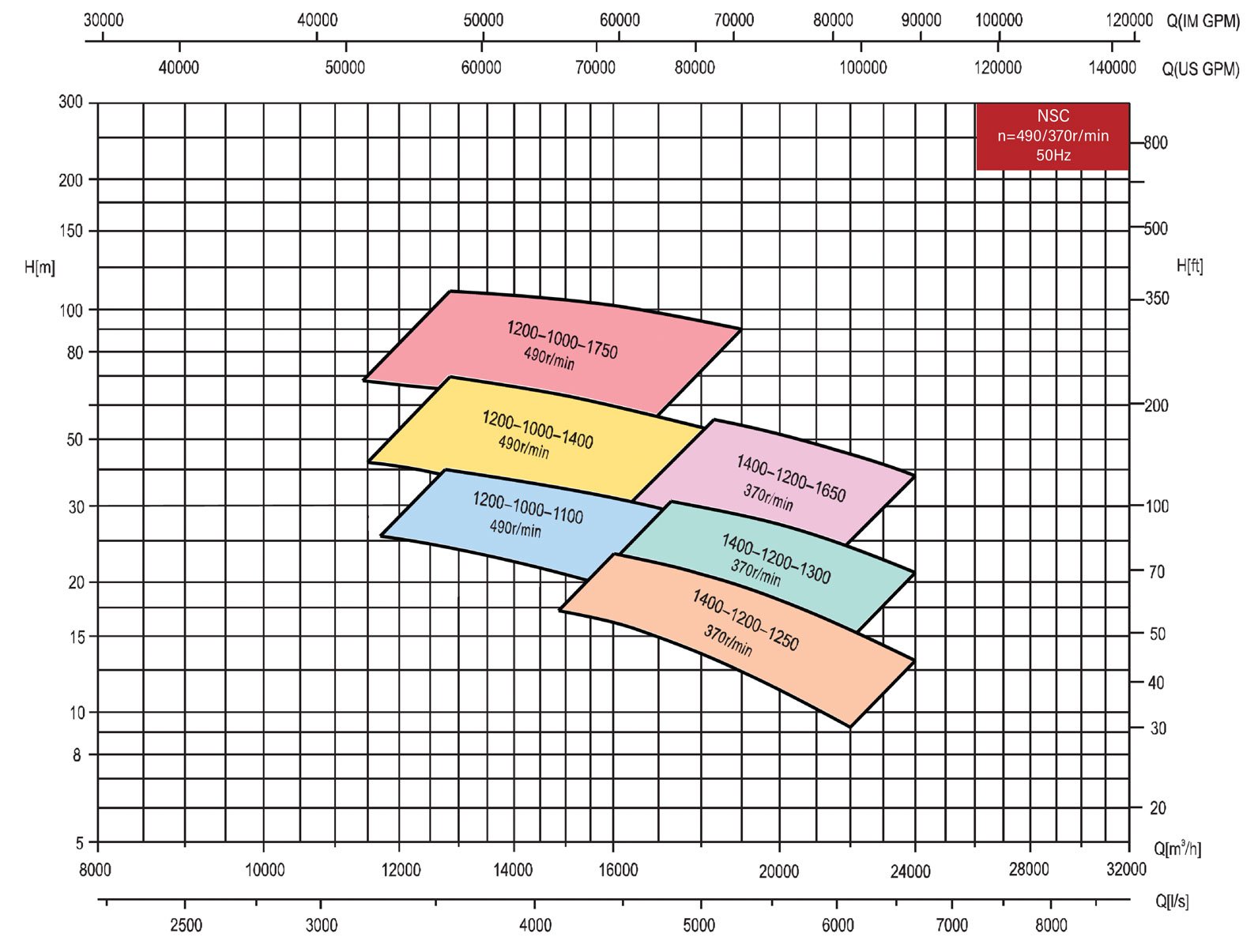

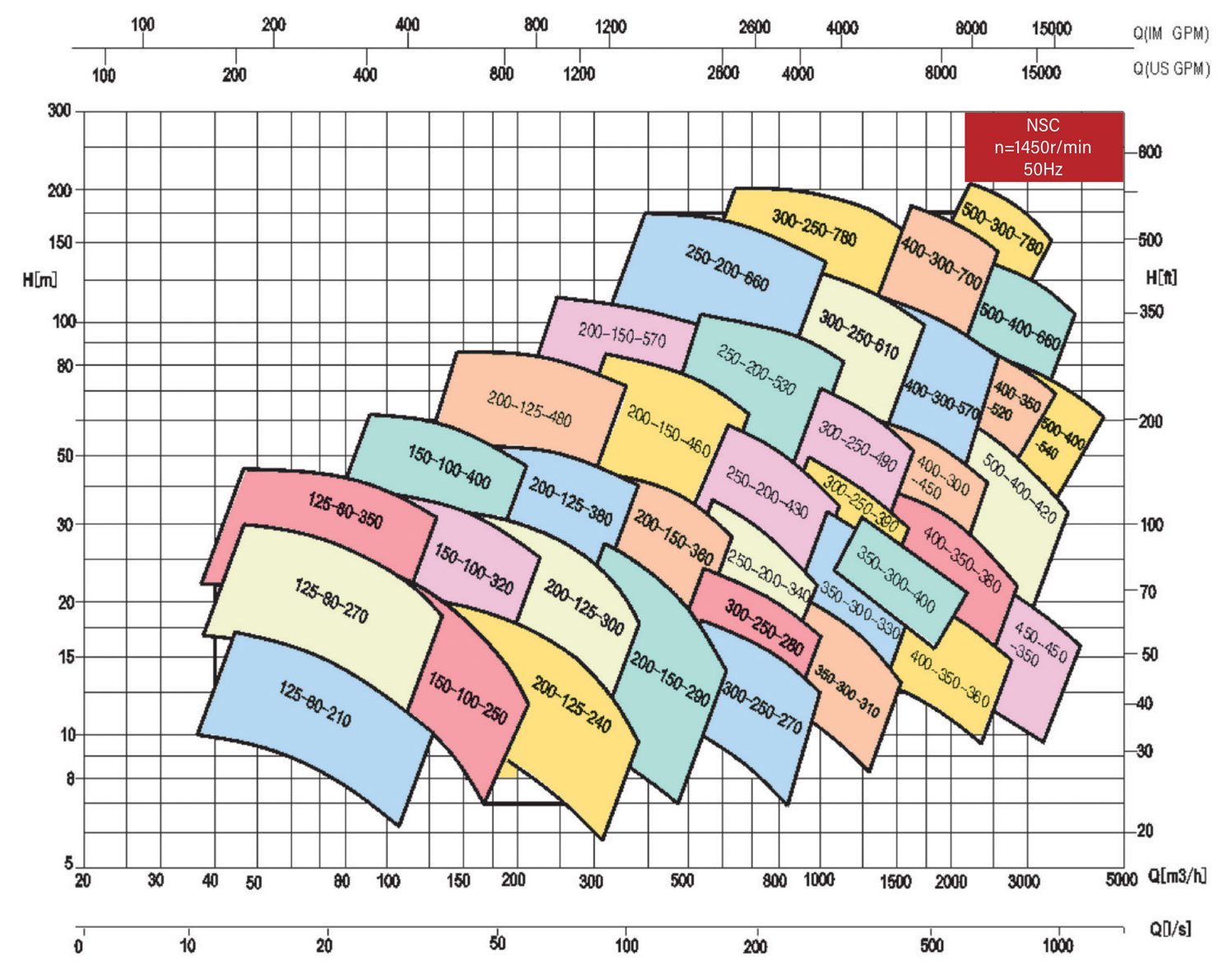

- Hydraulic Performance Curves
Description
Applications:
- Clean water or medium similar to water in Physical and chemical properties.
- Water supply/Drainage/Irrigation /Power station /Hydropower station /Fire-fighting /Air-conditioning /Building industry /Marine applications /All kinds of water for industrial process
- Abrasive medium.
- Sand water /Oxide scale water /Others.
- Corrosive medium.
- Desalination /Bittern / Sea water /Others.
- High temperature medium.
- Heating network circulating water /All kinds of chemical liquid.
- Petroleum and chemical liquids (according to API610 BB1).
- Crude oil and refined oil / Oil loading and unloading of oil.
- terminal/All kinds of chemical liquid.
Features and Advantages:
- The double suction pump enters water from both sides, and the pump has good cavitation performance, high efficiency and energy saving.
- The utility model has the advantages of simple installation, convenient maintenance and compact structure.
- During maintenance, there is no need to disassemble the inlet and outlet pipes, open the pump cover, and the rotor can be taken out for maintenance.
Product Catalog:
Additional information
| Capacity Q: | 50-20000 m3/h |
|---|---|
| Head H: | 10-230m |
| Suction Slide DN: | 100-1400mm |
| Discharge Him DN: | 80-1200mm |
| Operating Pressure P: | ≤5MPa |
| Operating Temperature T: | -15°C-+200°C(above80°C. |
| Abrasive medium concentration: | ≤4% |
Overview
Applications:
- Clean water or medium similar to water in Physical and chemical properties.
- Water supply/Drainage/Irrigation /Power station /Hydropower station /Fire-fighting /Air-conditioning /Building industry /Marine applications /All kinds of water for industrial process
- Abrasive medium.
- Sand water /Oxide scale water /Others.
- Corrosive medium.
- Desalination /Bittern / Sea water /Others.
- High temperature medium.
- Heating network circulating water /All kinds of chemical liquid.
- Petroleum and chemical liquids (according to API610 BB1).
- Crude oil and refined oil / Oil loading and unloading of oil.
- terminal/All kinds of chemical liquid.
Features and Advantages:
- The double suction pump enters water from both sides, and the pump has good cavitation performance, high efficiency and energy saving.
- The utility model has the advantages of simple installation, convenient maintenance and compact structure.
- During maintenance, there is no need to disassemble the inlet and outlet pipes, open the pump cover, and the rotor can be taken out for maintenance.
Product Catalog:
Details
| specifications | |
|---|---|
| Abrasive medium concentration: | ≤4% |
| Capacity Q: | 50-20000 m3/h |
| Discharge Him DN: | 80-1200mm |
| Head H: | 10-230m |
| Operating Pressure P: | ≤5MPa |
| Operating Temperature T: | -15°C-+200°C(above80°C. |
| Suction Slide DN: | 100-1400mm |
