Woltman (Turbine)

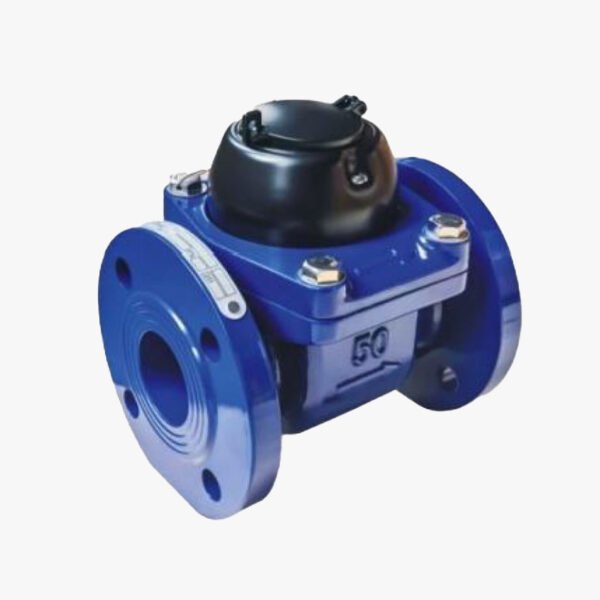

Heavy-duty Woltman turbine water meter with epoxy-coated iron body and IP68 protected dry register. Delivers accurate large-flow measurement, low pressure loss, and long-lasting corrosion resistance.
| Technical Data | |
|---|---|
| Max Pressure (Bar) | PN16 |
| Max. Temp (°C) | 50 |
| Qmax (m³/h) | 120, 1200, 1600, 20, 200, 2000, 30, 300, 3000, 50, 500, 6000, 80, 800 |
| Size(mm) | 100, 125, 150, 200, 250, 300, 350, 40, 400, 50, 500, 600, 65, 80 |
- Order now and your order ships by Tue, Mar 12
- Description
- Additional information
Description
- All the materials contact with water, consciously selected by the known resistance to corrosion;
-
Iron body with inside and outside epoxy coating for protecting the corrosion;
-

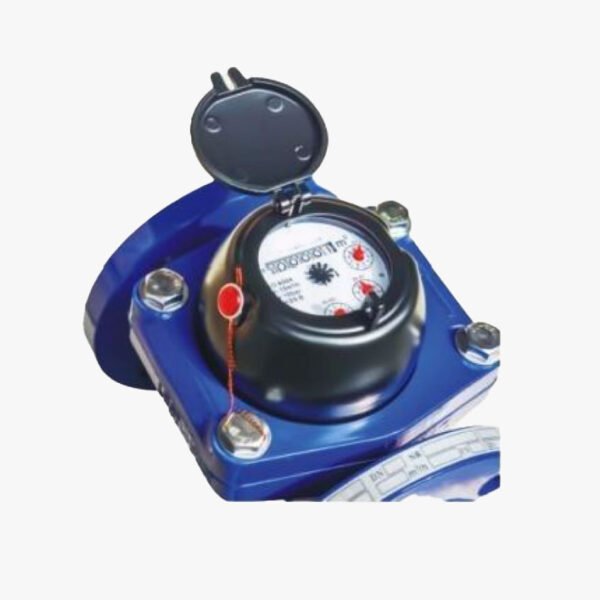

The ROTATING indicator register for the most comfortable reading position;
-
The copper can super dry register with IP68 protection;
-
The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;
-
Suitable for any position installation;
-
Low pressure loss;
-
No effected by external magnetic fields;
-
Pulse output always ready;
Additional information
| Size(mm) | 100, 125, 150, 200, 250, 300, 350, 40, 400, 50, 500, 600, 65, 80 |
|---|---|
| Qmax (m³/h) | 120, 1200, 1600, 20, 200, 2000, 30, 300, 3000, 50, 500, 6000, 80, 800 |
| Max Pressure (Bar) | PN16 |
| Max. Temp (°C) | 50 |
Overview
- All the materials contact with water, consciously selected by the known resistance to corrosion;
-
Iron body with inside and outside epoxy coating for protecting the corrosion;
-
The ROTATING indicator register for the most comfortable reading position;
-
The copper can super dry register with IP68 protection;
-
The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;
-
Suitable for any position installation;
-
Low pressure loss;
-
No effected by external magnetic fields;
-
Pulse output always ready;
Details
| specifications | |
|---|---|
| Max Pressure (Bar) | PN16 |
| Max. Temp (°C) | 50 |
| Qmax (m³/h) | 120, 1200, 1600, 20, 200, 2000, 30, 300, 3000, 50, 500, 6000, 80, 800 |
| Size(mm) | 100, 125, 150, 200, 250, 300, 350, 40, 400, 50, 500, 600, 65, 80 |
